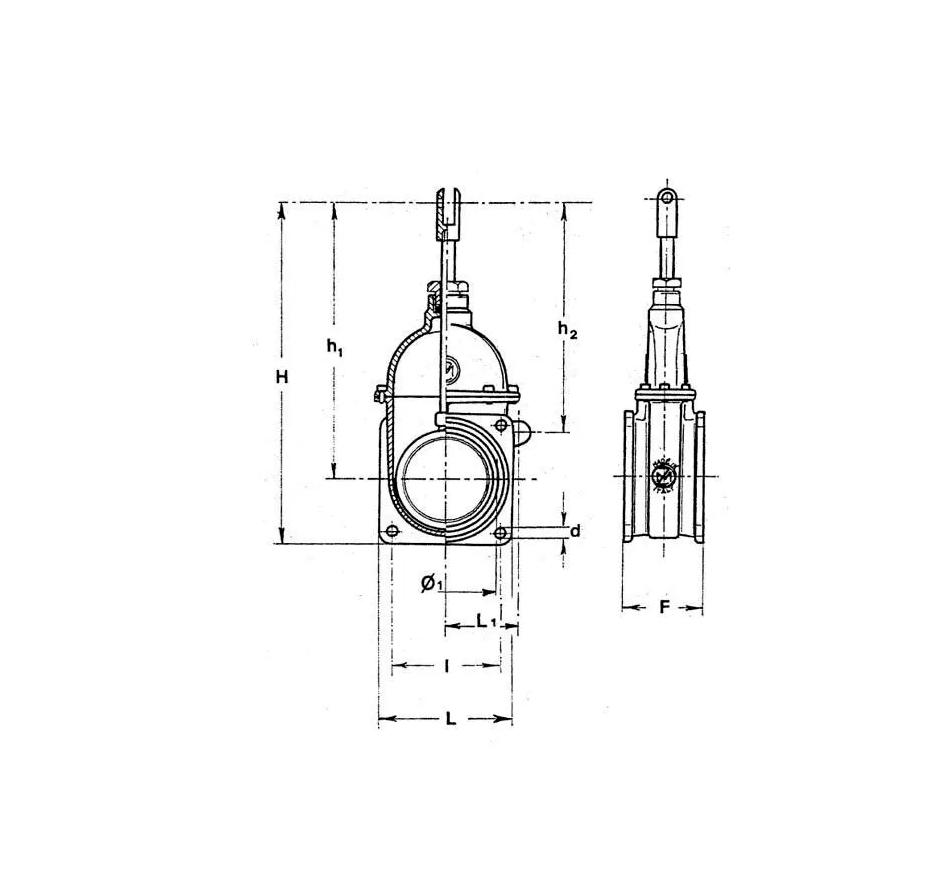

Ø Nominal bore diameter - 5 inches
l The distance between the screws/holes of the flanges - 150 mm
d Diameter of flange mounting screws/holes - 13 mm
F rim thickness - 90 mm
L Total width - 180 mm
H Total height - 435 mm
h1 The distance between the center of the transition hole and the end of the lever - 345 mm
h2 Lever mounting hole distance (vertical) - 290 mm
