With o-ring seal

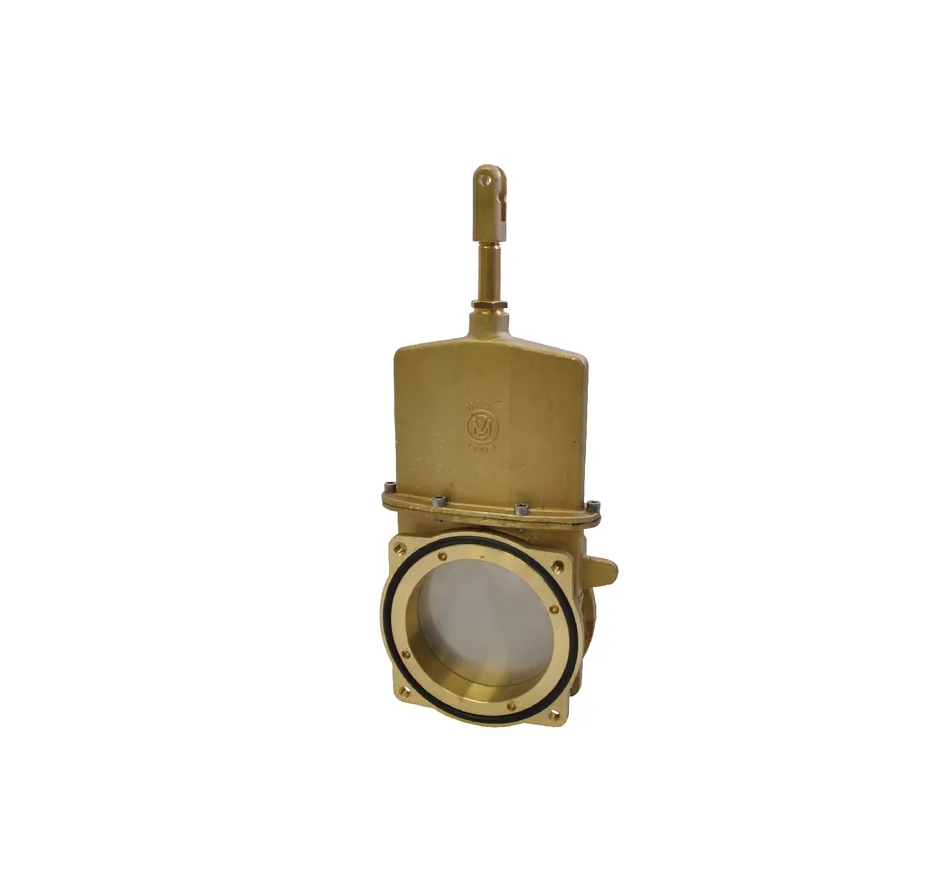

Shut-off valve with stainless steel plate

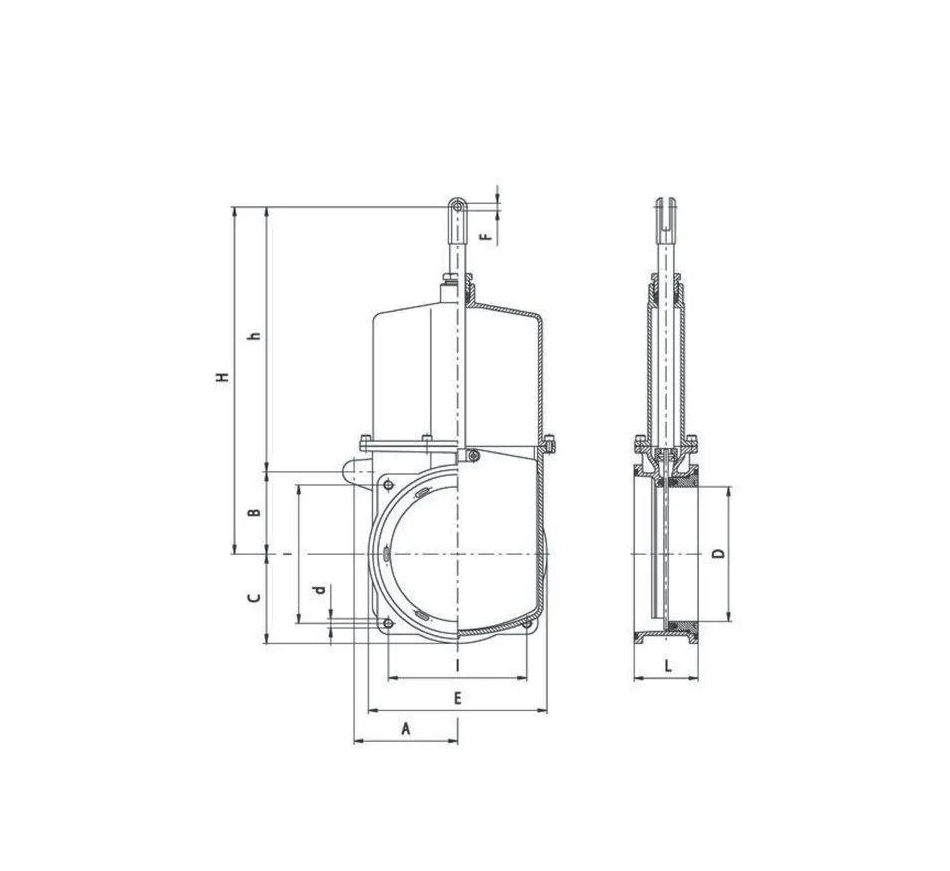

Nominal diameter of outlet D - 145 mm
D outlet nominal diameter - 6 inches
Maximum working pressure - 4 BAR
l The distance between the screws/holes of the flanges - 150 mm
d Thread diameter of flange mounting bolts/holes - M12
L Flange thickness - 68 mm
F Cylinder connection hole diameter - 10.5mm
E Total width - 198 mm
C Passage hole distance from the center to the bottom - 99 mm
The vertical distance between the center of the H-massage hole and the lever hole - 439 mm
B The distance between the center of the hole and the end of the lever - 60 mm
A Center to left end distance - 115 mm
h Lever mounting hole distance (vertical) - 379 mm
