Rambid

WARNING ramps up to 1000kg are not suitable for tracked vehicles due to point loading
WARNING. The specified maximum load capacity is for the set.

Conforms to European directives, tested according to TüV / GS.
Very light weight
Solid material
Durable anti-slip profile
Easy to clean
Model RC2500:
load capacity max. 400 kg / set.
ramp angle 30% (17°)
load capacity max. 1000 kg / set
own weight RC251000 - 15 Kg per pair
Total length - 2500 mm
Total width - 260 mm
Total height - 75 mm
Max. load - 1000 kg
Weight - 15 kg
Material - Aluminum

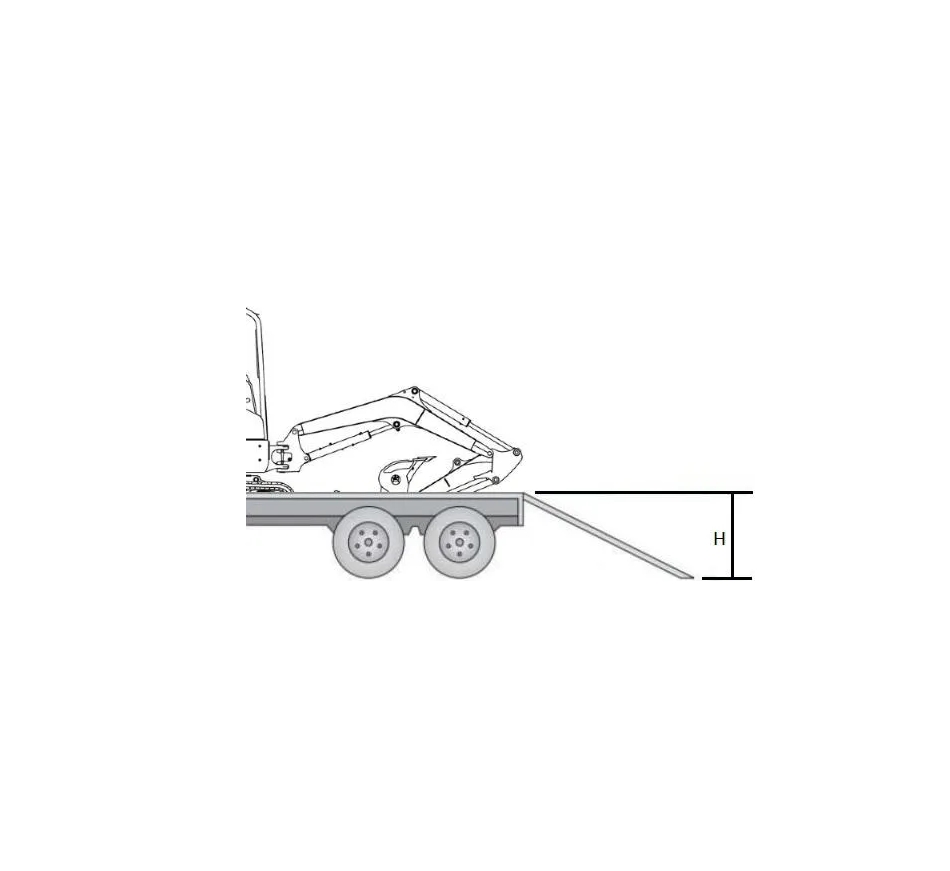

H Min loading height - 825 mm
H Max loading height - 985 mm

1000 kg per pair = 500 kg per axle or 250 kg per wheel on one ramp plate
